FK8921

Fan Filter with tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, standard protection can reach IP 54.

Quick-fit technology enables fan filter unit to snap into prepared mounting cutouts to eliminate the need for any tools.
Reversing the fan motors changes the airflow direction.
Power connections can be positioned for quick wiring with spring clamp terminals that require no tools.
Louvered grill latch for quick, toolless filter mat replacement.

Full Name

Company Name

Work Email

Project Type

expand_more

Message

By submitting this form, you agree to our privacy policy. We typically respond within 24 hours.

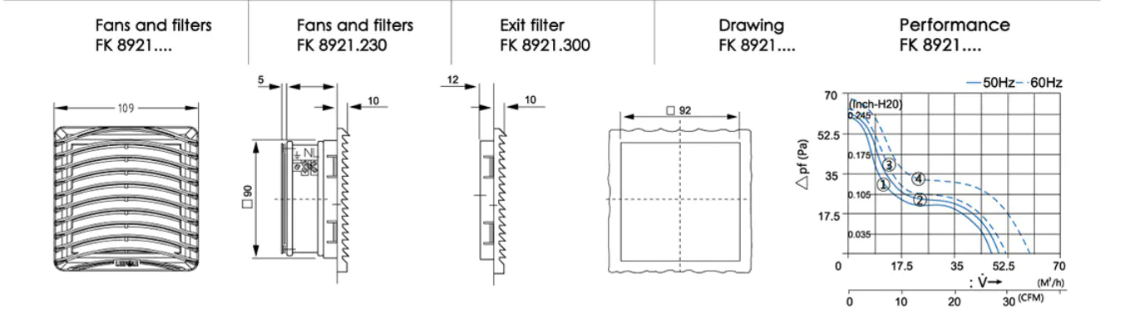

Technical data
Model	FK8921.230	FK8921.115	FK8921.024
Available colors	2024.001	2024.002	2024.003
Order number	F2E-80B-230	F2E-80B-115	F2E-80B-24
Standard fan	230/50/60	115/50/60	24(DC )
Rated voltage (V / Hz)	20/25m3/h
Air flow, free blowing	1xFK8921.300:15/18m3/h
Axial Fan	Automatically shield pole motor		DC Motor
Rated current (A)	0.08/0.07	0.16/0.14	0.21
Power (W)	13/11	13/11	4.3
Noise level (dB)	36/38
Operating temperature range	-10℃ to +55℃
Exit filter	FK8921.300 (2024.004)
Filter mat model	Special voltage needs can call the inquiry of the Company
