FK9923 Fan Filter Unit

The FK9923 fan filter unit is a mid-size model for control cabinets with a moderate heat load, delivering 100 m3/h free airflow at 230V AC through a 204mm x 204mm housing (177mm x 177mm cut-out).

edit_note Request a Bulk Quote

Send us a Message

Full Name

Company Name

Work Email

Project Type

expand_more

Message

By submitting this form, you agree to our privacy policy. We typically respond within 24 hours.

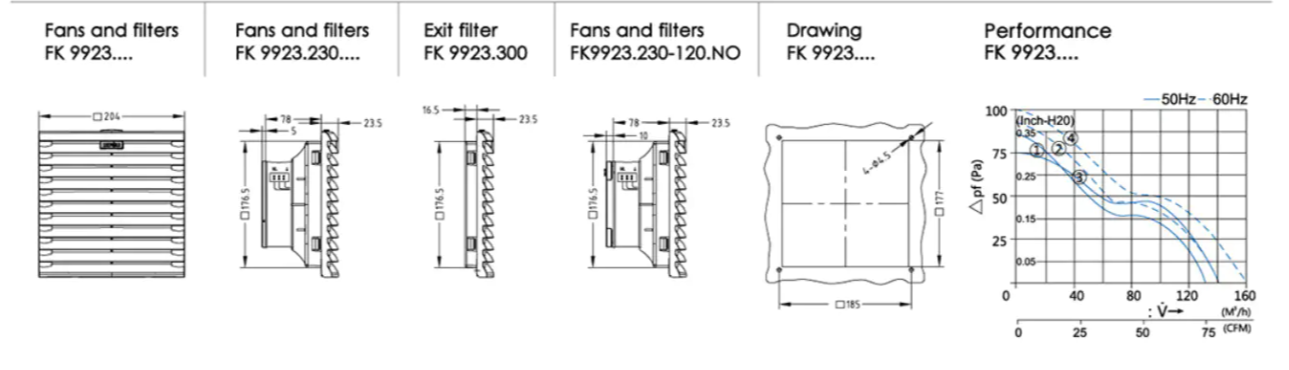

Technical data
Model/Order number	FK9923.230 2023.011	FK9923.115 2023.012	FK9923.024 2023.013
Normally open/close/Order number	FK9923.230-120.NO 2023.014	FK9923.115-120.NO 2023.015	FK9923.024-120.NO 2023.016
Model EMC/Order number	FK9923.230-EMC 2023.054
Standard fan	F2E-120S-230	F2E-120S-115	F2E-120B-24
Rated voltage (V / Hz)	230/50/60	115/50/60	24 ( DC )
Air flow, free blowing	105/120m3/h
Air flow With export filters	lxFK9923.300:71/82m3/h
Axial Fan	Automatically shield pole motor		DC Motor
Rated current (A)	0.12/0.10	0.24/0.20	0.3
Power (W)	19/14	18/15	3.5
Noise level (dB)	50/52
Service life	70,000 hours at 25°C / 49,000 hours at 50°C
Operating temperature range	-10°C to +55°C
Exit filter/Order number	FK9923.300/FK9923.300-EMC 2023.020/2023.055
Remarks	Special voltage needs can call the inquiry of the Company
