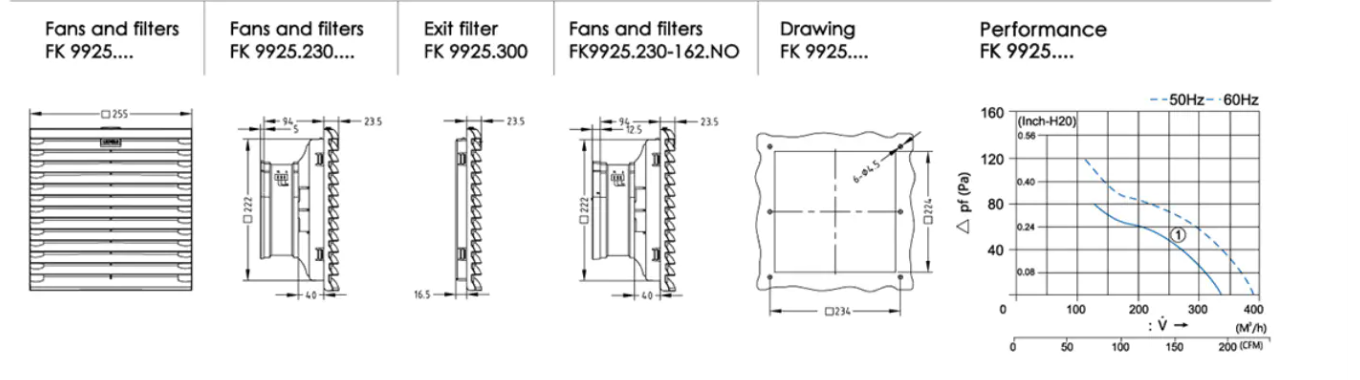

FK9925 Enclosure Fan Filter | 230V AC | 370 m³/h | IP54/IP55
Key specifications
- Airflow: 370 m³/h (rated, free air)
- Voltage: 230V AC (115V and 24V variants available)
- Protection rating: IP54/IP55
- Mounting: snap-in, tool-free installation into a prepared panel cutout
- Filter access: louvered grill latch, tool-free filter mat replacement
- Airflow direction: reversible by swapping fan orientation
Typical applications
- Control cabinets and PLC enclosures generating moderate internal heat load
- Variable frequency drive (VFD) cabinets requiring continuous airflow
- Outdoor or semi-outdoor enclosures where IP54/IP55 splash/dust protection is required
Installation notes
Power connections use screw terminals for wiring. The filter mat for this enclosure fan filter is replaceable from the front without removing the fan housing, which simplifies scheduled maintenance in the field.
FAQ
Q: Can the FK9925 be used outdoors?
A: The IP54/IP55 rating protects against dust ingress and water splashing from any direction, which covers most outdoor enclosure applications. For direct rain exposure or washdown environments, please contact us to confirm suitability.
Q: What cabinet size is the FK9925 suitable for?
A: As a guideline, size the fan to the cabinet's heat load and internal volume rather than physical dimensions alone. Contact our team with your enclosure's wattage dissipation for a sizing recommendation.
Q: Is a thermostat control available?
A:No, please use JWT6011 or JSK0011F to connect fan filter as the termostat control.
