FKL5522 Ultra-Thin Enclosure Fan Filter is a compact, screwless filter fan for standard electrical cabinets, IP54-rated.
The ultra-thin filter is equipped with a premium sealing strip along its edges, effectively preventing dust and moisture from entering the control cabinet through the openings. The surface louver features an arched structure that further blocks ingress. A non-woven fiber filtration pad prevents dust particles larger than 10 microns. With a louver protrusion of only 4-6mm, it greatly enhances aesthetic appeal. No screws are required for installation — simply snap it into the pre-cut opening.
Key specifications:

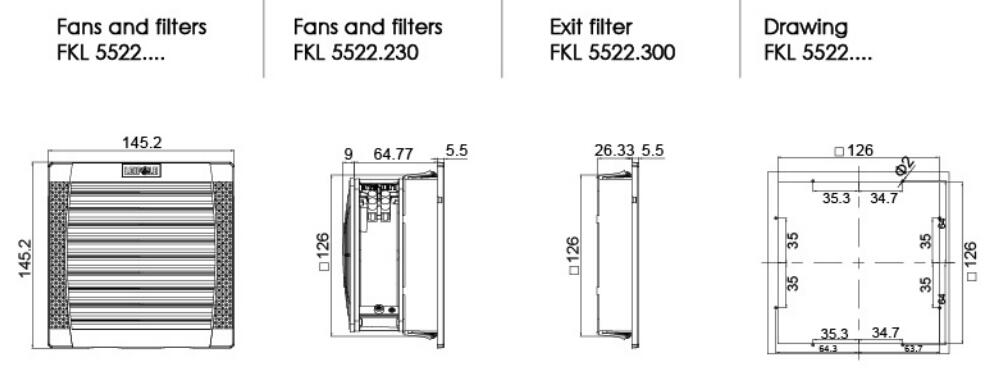

- Opening dimensions: 126 x 126mm; overall 145.2 x 145.2 x 77.3mm
- Operating voltage: 90V-235V AC, 50/60Hz
- Combined airflow (with filter): up to 58 m³/h ±5%
- Protection rating: IP54, with 6mm G2 filter cotton, 73% filtration efficiency
- Supporting axial fan: F2E-120B-230, shaded pole motor
Typical applications: standard control cabinets and enclosures where a screwless, ultra-thin filter fan is preferred over bulkier fan-and-grille assemblies.
