FKL5526 High Airflow Enclosure Fan Filter is a high-capacity, screwless filter fan for demanding cabinet cooling loads, IP54-rated.
The ultra-thin filter is equipped with a premium sealing strip along its edges, effectively preventing dust and moisture from entering the control cabinet through the openings. The surface louver features an arched structure that further blocks ingress. A non-woven fiber filtration pad prevents dust particles larger than 10 microns. With a louver thickness of only 4-6mm protrusion, it greatly enhances aesthetic appeal. No screws required for installation — simply insert into place.
Key specifications:

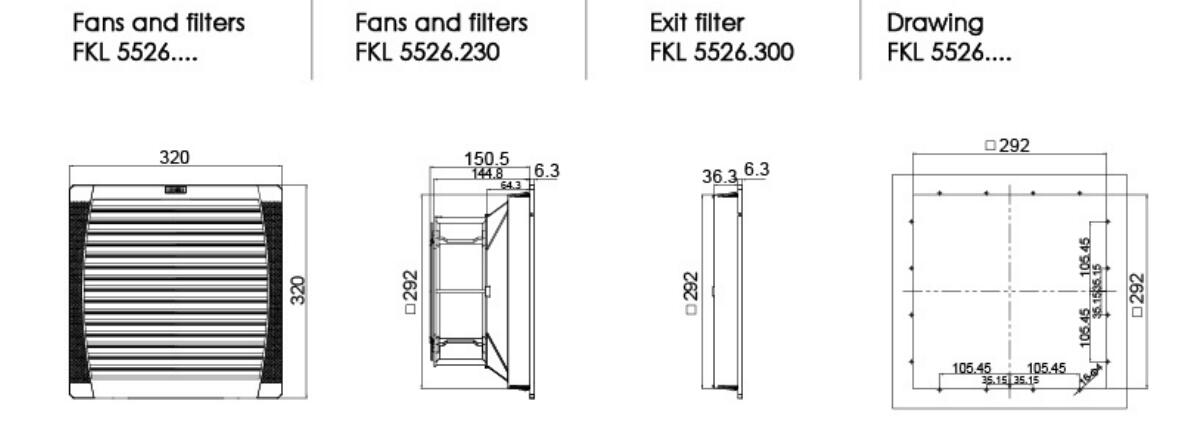

- 292 x 292mm opening, overall dimensions 320 x 320 x 157mm
- 115V-235V AC operating range, 230V AC 50/60Hz rated
- Free airflow 750/900 m³/h, combined airflow (with filter) 520/580 m³/h
- IP54-rated with 6mm G2 filter cotton, 73% filtration efficiency
- F2E-260B-230-M capacitor-start asynchronous motor
Typical applications: high-heat-load electrical enclosures, industrial control cabinets, and equipment housings requiring high-volume airflow with dust and moisture protection.
