Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
Model
Order No
JRQFM100BA
2020.010
JRQFM150BA
2020.011
JRQFM200BA
2020.012
JRQFM300BA
2020.013
Model
230VAC,50/60Hz/
120VAC,50/60Hz
Order
Heat
out put (W)
Airflow(m3/h)
Pre-fuse T (time-delay) 230VAC/ 120VAC

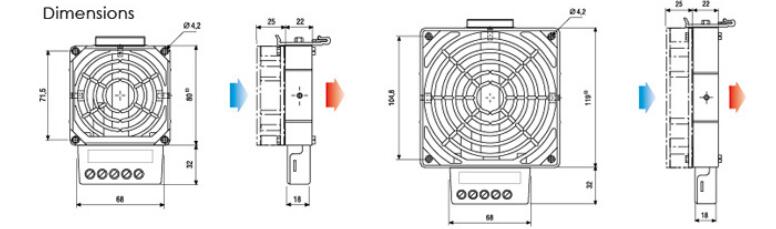

WxHxD(mm)
Weight (kg)
JRQFM100BA
2020.010
100W
33
1/1.4A
80x 112x22mm
0.4
JRQFM150BA
2020.011
150W
33
1.25/2A
80x 112x22mm
0.4
JRQFM200BA
2020.012
200W
120
1.4/2.5A
119x151x22mm
0.5
JRQFM300BA
2020.013
300W
120
2/4A
119x151x22mm
0.5
Technical data
Heating element
high performance cartridge
Temperature safety cut-out
to protect against overheating in case of fan failure, automatic reset
Heater body
die-cast aluminium (glass bead blasted)
Electrical connection
3-pole screw connector 2.5mm2, clamping torque 0.8Nm max
Connection casing
plastic according to UL94 V-0, black
Installation
clip for 35mm DIN rail, EN 60715
Fitting position
vertical airflow (air outlet up)
Operating / storage areas
-45P 〜+75°C(-49°F~+158°F)
Operating / Storage humidity
max. 90% RH (non-condensing)
Protection class
IP20(earthed)
Axial fan, ball bearing
airflow see table service life 50,000h at 25°C(77°F)
