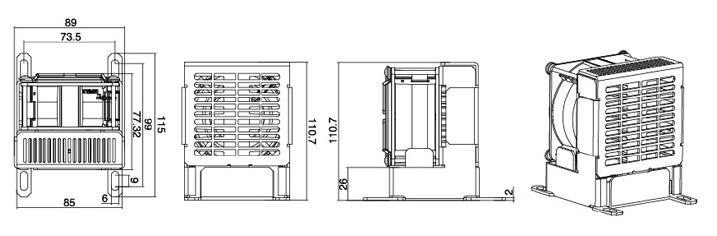

Technical data
Model	JRQFM300BAP
Order	2020.024
Heating(Tu=+20eC)	300W
Rated voltage	230 V AC 50 / 60 Hz
Power consumption	285
Starting current	2.8A
Weight	1250g
Air flow	95m3/h
Protection class	IP 20
Operating / Storage temperature	-40°C~+70°C(-40°F~+158°F)
Storage / Storage temperature	一40°C~+70°C(-40°F~ + 158°F)
Installation method	M6 Screw fixation or clip for 35mm DIN rail
