PVC Slotted Wiring Duct for Industrial Wiring Management

Wide Slot Wiring Duct

Wide slot/finger design provides greater sidewall rigidity and can be
used with a wide range of wire bundle sizes.
Made of lead-free rigid PVC.
UL Recognized continuous use temperature: 50°℃(122°F).
UL94 Flammability Rating of V-0.
Duct and cover packaged together in 2 meter or binch lengths.

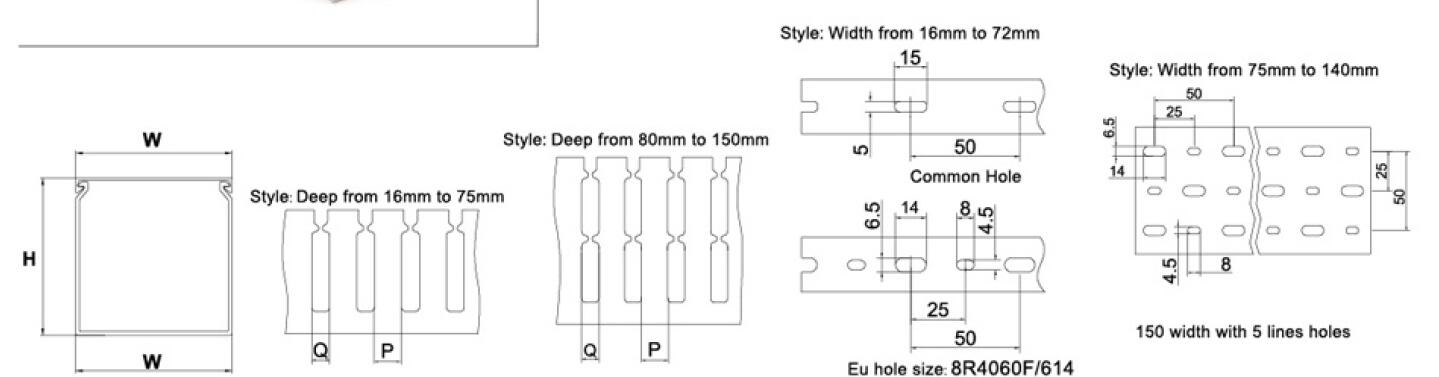

Provided with DIN 43659 mounting holes.
Color: Gray RAL7030 ,Blue RAL5015,White RAL9016,Black RAL9005.

PVC Slotted Wiring Duct for Industrial Wiring Management

Feature:

1.Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.
2. Made of lead-free rigid PVC
3.UL recongnized continuous use temperature:50ºC
4.UL94 Flammability rating of V-0
5. Duct and cover packaged together in 2 meter or 6'' length.
6. Provided with DIN 43 659 mounting holes.
7. Color: Gray Ral7030, Blue Ral5015, white Ral9016, Black Ral9005

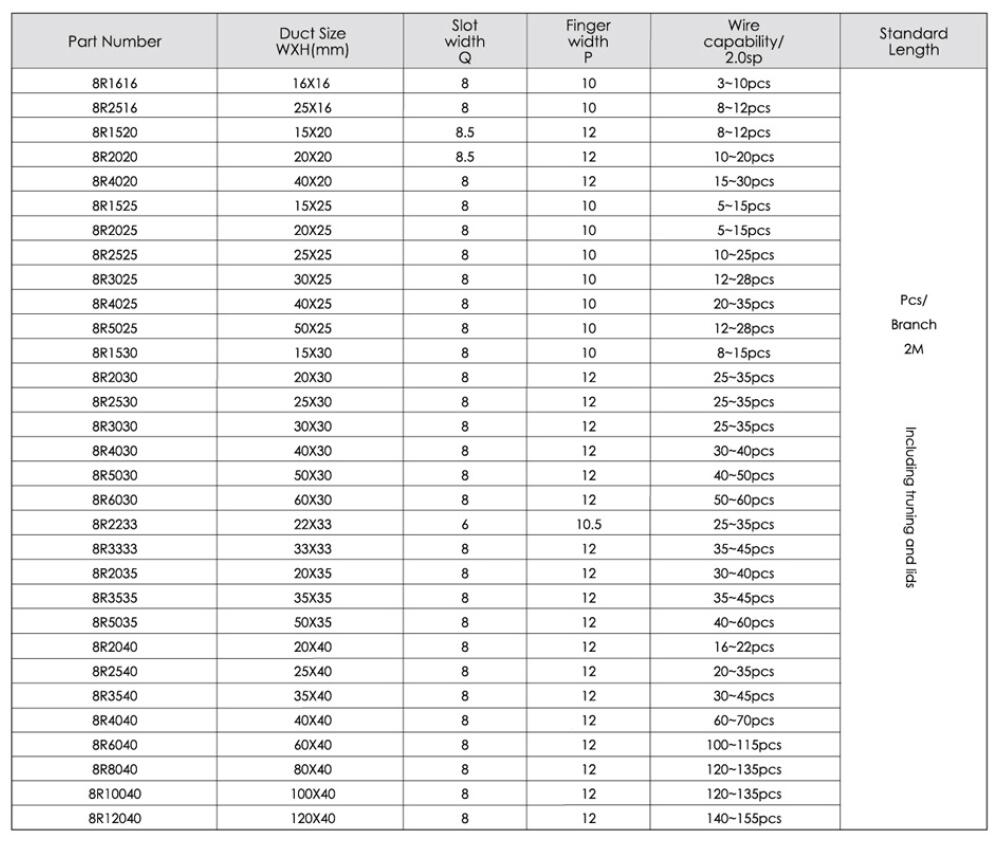

Model	Duct Size WxH(mm)	Q(mm)	P(mm)	Base	Length	Pcs/Package
8R2525	25X25	8	10	Small	2 Meters	100 pcs
8R2530	25X30	8	10	Small		50 pcs
8R2535	25X35	8	10	Small		50 pcs
8R2540	25X40	8	10	Small		50 pcs
8R2545	25X45	8	10	Small		50 pcs
8R2550	25X50	8	10	Small		50 pcs
8R2560	25X60	8	10	Small		40 pcs
8R2565	25X65	8	10	Small		40 pcs
8R2580	25X80	8	10	Small		30 pcs
8R3030	30X30	8	10	Small		60 pcs
8R3040	30X40	8	10	Small		50 pcs
8R3050	30X50	8	10	Small		50 pcs
8R3060	30X60	8	10	Small		40 pcs
8R3080	30X80	8	10	Small		30 pcs
8R3333	33X33	8	10	Small		50 pcs
8R3345	33X45	8	10	Small		50 pcs
8R3365	33X65	8	10	Small		40 pcs
8R33100	33X100	8	10	Small		30 pcs
8R3530	35X30	8	10	Small		50 pcs
8R3535	35X35	8	10	Small		50 pcs
8R3550	35X50	8	10	Small		50 pcs
8R3560	35X60	8	10	Small		40 pcs
8R3580	35X80	8	10	Small		30 pcs
8R35100	35X100	8	10	Small		28 pcs
8R4040	40X40	8	10	Small		50 pcs
8R4050	40X50	8	10	Small		50 pcs
8R4060	40X60	8	10	Small		40 pcs
8R4080	40X80	8	10	Small		30 pcs
8R40100	40X100	8	10	Small		28 pcs
8R4545	45X45	8	10	Small		40 pcs
8R4550	45X50	8	10	Small		40 pcs
8R4560	45X60	8	10	Small		32 pcs
8R4565	45X65	8	10	Small		32 pcs
8R4580	45X80	8	10	Small		30 pcs
8R5050	50X50	8	10	Small		40 pcs
8R5060	50X60	8	10	Small		32 pcs
8R5080	50X80	8	10	Small		30 pcs
8R50100	50X100	8	10	Small		24 pcs
8R5580	55X80	8	10	Small		24 pcs
8R6040	60X40	8	10	Small		30 pcs
8R6050	60X50	8	10	Small		30 pcs
8R6060	60X60	8	10	Small		24 pcs
8R6080	60X80	8	10	Small		24 pcs
8R60100	60X100	8	10	Small		20 pcs
8R6565	65X65	8	10	Small		24 pcs
8R70100	70X100	8	10	Large		16 pcs
8R8050	80X50	8	10	Large		30 pcs
8R8060	80X60	8	10	Large		24 pcs
8R8080	80X80	8	10	Large		16 pcs
8R80100	80X100	8	10	Large		16 pcs
8R10050	100X50	8	10	Large		20 pcs
8R10060	100X60	8	10	Large		16 pcs
8R10080	100X80	8	10	Large		16 pcs
8R100100	100X100	8	10	Large		12 pcs
8R100120	100X120	8	10	Large		10 pcs
