1. Axial Fans in Server Cabinet Thermal Design
A well-designed server cabinet cooling system significantly enhances its overall cooling performance. An effective cooling solution should consider traditional data center air conditioning systems and current high-density cabinet cooling requirements. By optimizing cooling designs, especially for high heat density cabinets, the system can meet the actual cooling demands.
One key strategy is to integrate axial fans into the server cabinet’s air ducts, opening ventilation holes to improve airflow. This approach enhances the internal structure and facilitates better air circulation, contributing to more effective cooling.Leipole's axial fans are an ideal choice for such applications, offering high airflow efficiency and durable construction.
2. Water-Cooled Technology for Data Room Cabinets
Water-cooled cooling technology is an emerging solution for server cabinets, offering a more energy-efficient and environmentally friendly alternative to traditional air conditioning methods. This technology reduces reliance on conventional cooling systems, allowing for greater system expansion and sustainability.
3. Server Cabinet Cooling Technology Analysis
The application of water-cooled technology in server cabinets allows for the intake of cold air and the expulsion of hot air in a continuous cycle. This improves the overall cooling efficiency and plays a significant role in enhancing the cabinet’s thermal management. The system utilizes a stable water source to maintain optimal cooling performance while minimizing environmental impact. For more robust cooling in industrial settings or high-density data rooms, Leipole's enclosure air conditioners provide unmatched performance. Below are three key cooling methods used in server cabinets:

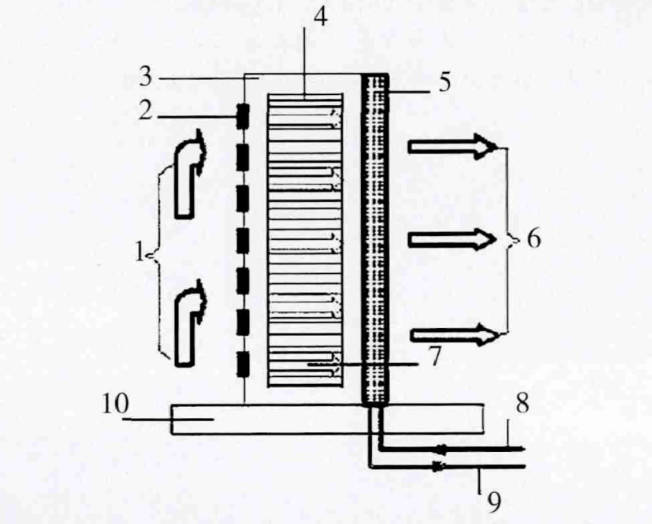

3.1 Open Cabinet with Water-Cooled Backplane
This method improves the cooling capacity of server cabinets through a water-cooled backplane. The technical principle is shown in Figure 1.

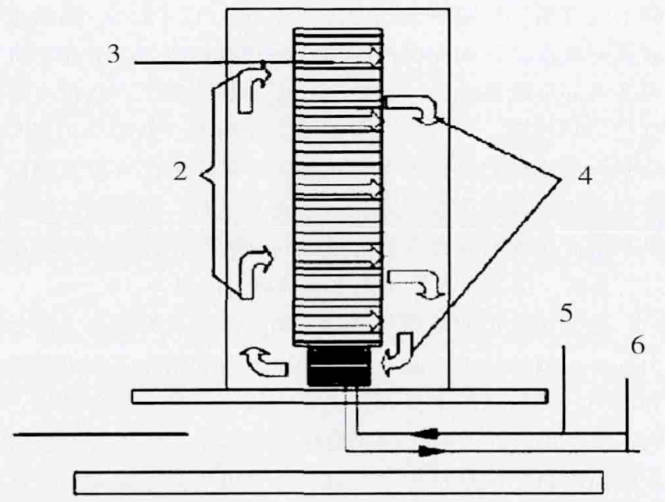

3.2 Closed Water-Cooled Cabinet Cooling Technology
In this method, air circulation occurs within a closed system, as illustrated in Figure 2. The system recycles the air, reducing temperature while enhancing energy efficiency.
3.3 Server CPU Chip Cooling Technology
Localized heat dissipation using specialized cooling chips is another critical technique for server cabinet cooling, particularly around high-heat components like CPU chips.
In designing a server room cooling system, energy efficiency and high performance are key objectives. The core of the cooling solution revolves around utilizing a water circulation system to generate cold air, ensuring proper airflow within the cabinet. By balancing hot air expulsion and cold air intake, the server cabinet's temperature is effectively reduced, optimizing its performance.
