Cable entry systems or frames, also known as cable entry plates, belong to the category of products in the field of cable management and electrical connections. These products are mainly used to manage and protect cables to ensure that they can be introduced into electrical equipment such as devices, cabinets, control boxes, switchgear, etc. in a safe and organized manner, providing waterproofing, sealing, mechanical protection and electromagnetic shielding. Cable entry frames are an important part of the cable management system and help maintain the reliability, safety and performance of the electrical system. An important component in electrical engineering, cable entry panels have undergone years of product development and evolution to meet changing needs and technological advances.
Below are the key stages and shapes that represent major milestones in the product development history of cable entry plate / cable entry systems:
Version 1.0: Early cable penetration tubes/troughs or holes through walls
In the early days of electrical engineering, the concept of cable entry panels was not common. Typically, cables were brought into the building through metal conduits or through holes in the wall. This method was inefficient in terms of cable routing, maintenance difficulties and safety risks.
Version 2.0: Simple Cable Penetration Wall Plate Design
As the use of cables increased, people began to look for more efficient ways to penetrate walls to minimize the difficulty of cable installation and maintenance. The result was the first generation of single wall plate designs, typically made of metal or plastic, with a single opening for the introduction of a single cable.
Version 3.0 : Multi-Channel Bulkhead/Cable Entry System
As the number and types of cables increased, more channels of wall plates were needed to accommodate these cables. Multi-channel wall plates became available to allow multiple cables to be brought into a building through the same wall.

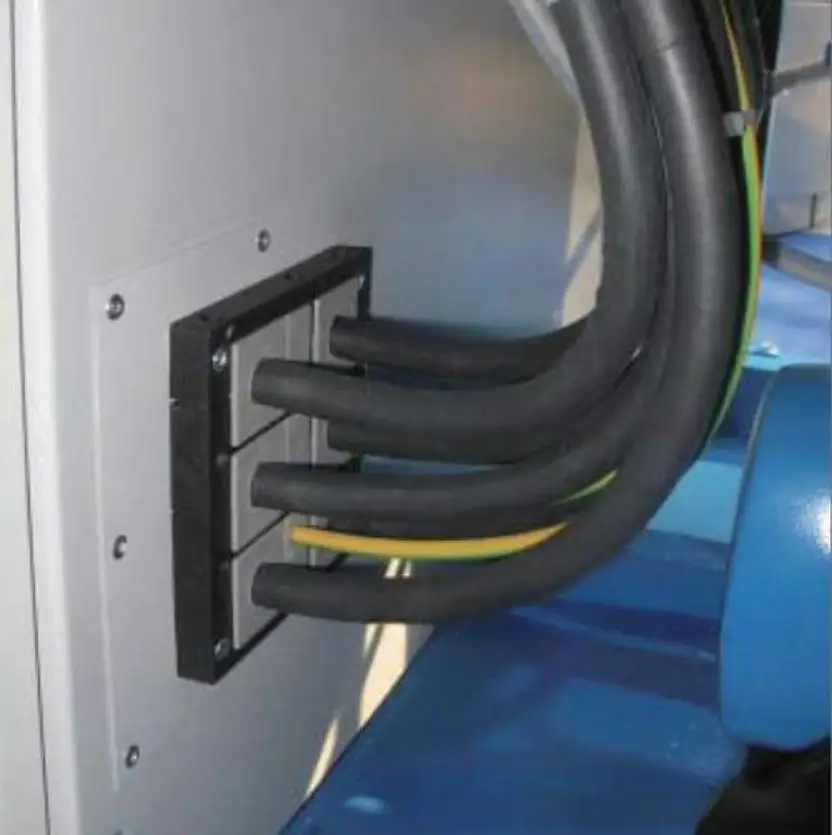

Version 4.0: Versatile, Modular, Scenario-Specific Advanced Cable Entry and Bulkhead Systems
As electrical equipment continues to be upgraded, cable protection requirements have increased. Modern wall penetrations must not only provide access to cables, but must also provide a seal to prevent moisture, dust and harmful gases from entering the building. As a result, new sealing and protection technologies have been introduced, including waterproof seals and adjustable seals. In addition, to improve building safety, modern wall panels often need to be fire resistant. These panels are made of fire-resistant materials that stop the spread of flames and smoke in the event of a fire.
If you're looking for a reliable and versatile solution, consider exploring Leipole's Cable Entry Plates. These advanced products are designed to meet the stringent demands of modern electrical installations, offering excellent protection and ease of installation. Visit the link to learn more and find the perfect fit for your needs.
Future-Proof Version 5.0: Modular, Intelligent and Manageable Cable Entry Systems
Some of the most advanced cable entry panels now include intelligent features that allow monitoring of cable status and maintenance requirements. These features can be managed via remote monitoring systems, increasing the maintainability and manageability of cable systems. Meanwhile, cable entry panels will become more innovative in their use of materials as the importance of sustainability grows and some cable entry panel manufacturers begin to use environmentally friendly materials and optimize their designs to reduce resource waste. Overall, the history of product development of cable penetration panels reflects the constant innovation and advancement in the field of electrical engineering. Today's wall penetrations are not only highly functional, but also focus on environmental friendliness, safety and maintainability to meet ever-changing cable management needs and building standards.
