The stadium has the function of organizing national indoor sports events
(including basketball, volleyball, badminton, boxing gym, table tennis, wrestling gym, gymnastics gym, etc.) for single official competitions, as well as the function of assemblies and cultural performances, with 2,998 fixed seats and 1,800 movable seats. The stadium is used for large-scale athletics, soccer and other sports competitions, and is designed in accordance with IAAF and FIFA standards; the standard 400m plastic runway has 4,020 fixed seats. Its auxiliary functions can also meet the needs of organizing large-scale cultural performances and rallies.Combined with the characteristics of the arena on the various types of ventilation systems to do a comparison, and ultimately choose the quality of light on the ceiling almost no load, easy to install, modeling, color can be integrated with the architectural environment of the fiber air distribution system.
The main stadium adopts the Farrer ducted air supply outlet with the diameter of φ1000mm for the main air supply duct and φ630mm for the branch duct, and uses the open jet nozzle air supply method to send the air to ensure that the air outlet has a high wind speed and a long range. Fast and accurate to reach the designated seat space, to meet the user requirements of the blowing sense, comfort. It adopts double rows of steel wire ropes to be hoisted at 2 o'clock and 10 o'clock, along the curved surface of the steel structure, which is overall beautiful and generous.
FAERY ducted fabric air outlet in the stadium application to bring the benefits of installation:
1, reduce construction accidents, to ensure construction safety, FAERY FARRY ducted fabric air outlet weight 150-400g / square meters, for the traditional air ducts 1%, the weight is minimal, reducing the risk of accidents in the installation of air ducts.
2, shorten the construction time, to ensure that the completion of the FAERY ducted fabric air outlet using the patented suspension process, the installation does not need to be adjusted, the installation cycle is only 1/10 of the traditional ventilation system, while the installation process can be changed to avoid interference between the various installation processes, to maximize the completion of the time ahead of schedule.
3、Reduce the construction cost, get more benefits.FAERY Farrer duct construction is convenient, the labor cost can be reduced by more than half.
In environments like this, maintaining efficient airflow is crucial for both the comfort of attendees and the longevity of the equipment. This is where the Leipole Axial Fan comes into play.

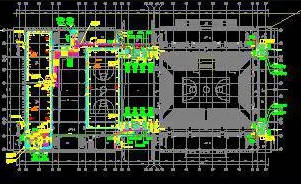

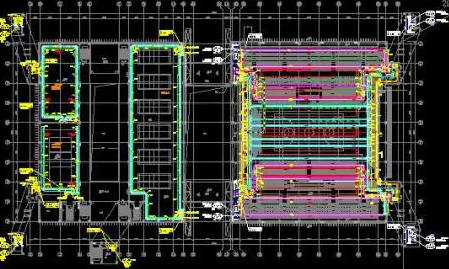

Air conditioning ventilation method:
1、Office, meeting, rest, VIP room and other small roomsAdopt fan coiler + new exhaust system. Since the venue building generally has a large area of changing rooms, shower rooms, public bathrooms and other areas that require exhaust air, it is recommended that the exhaust air of ordinary office, conference, rest and other rooms be discharged to the aisle by the exhaust fan to make full use of the residual cold, and then discharged to the outdoors by the bathrooms or changing shower rooms.
2、Ordinary large space
The large space of the stadium (competition hall, entrance rest hall, warm-up field, training hall, etc.) generally adopts the all-air primary return air system.
In the upper part of the stadium to set up the exhaust port for exhaust, heat exhaust at the same time also play the role of air volume balance.
3, gymnasium audience
If the seat air supply mode: in order to ensure the comfort of the personnel, the air supply temperature should be > 19.5 ℃, generally use the secondary return air system. p> If the side + top air supply mode: generally use the primary return air system.
